Oxford Dipper Hydraulic Hoist - Ranger Commode & Transporter

Product SKU: J-OP10013VAT relief

Dipper Options:

Price of this part: £0.00

Spreader Bar:

Price of this part: £0.00

Chair Support:

Price of this part: £0.00

Item in Stock

£10383.00

The Oxford Dipper is a proven, reliable and safe method of gaining access to the water.
Designed for use at swimming pools, therapy pools and quayside locations, the Dipper is easy to use and ensures full integration with its intended environment.

quantity

Description

Joerns Healthcare | Oxford Dipper Hydraulic Hoist | Ranger Commode & Transporter

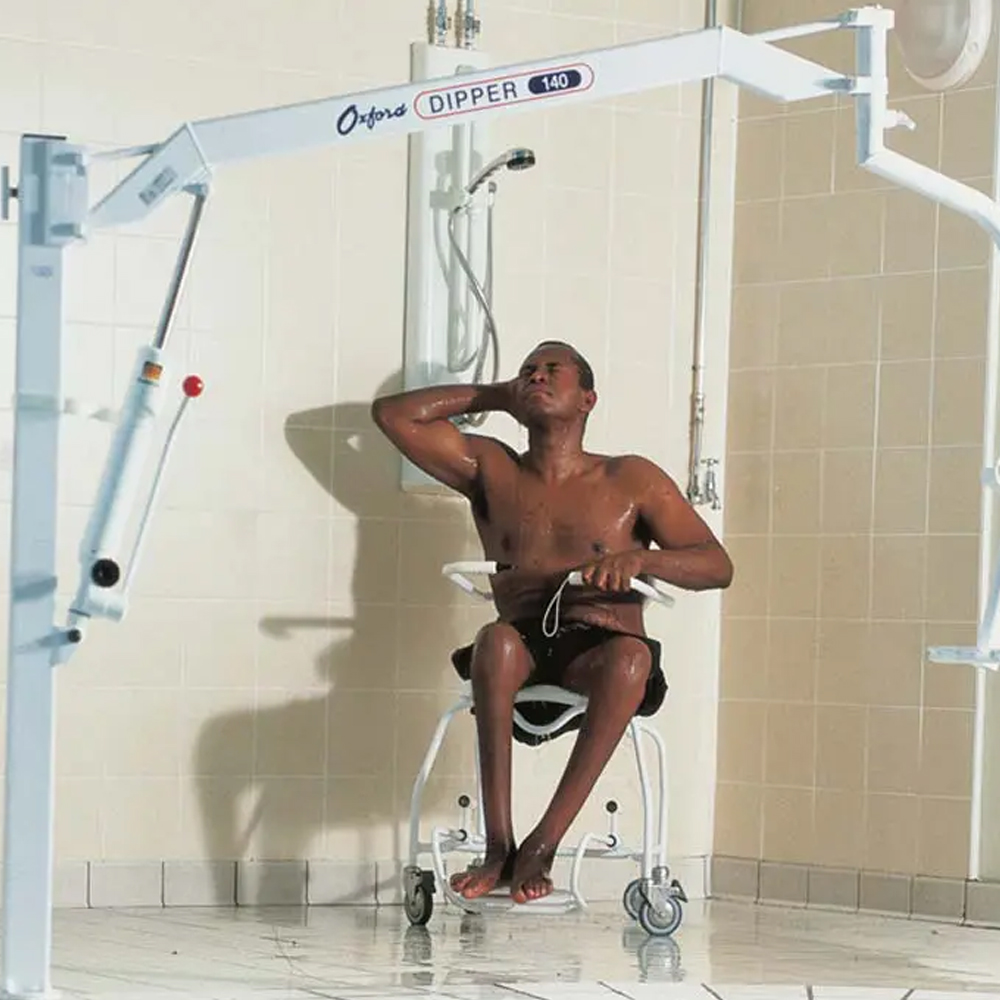

The Oxford Dipper poolside hoist is for use at swimming pools, therapy pools and quayside locations with a design that is both flexible and highly functional.
The market leading Dipper is hydraulically operated and is a proven, reliable and safe method of gaining access to the water with a weight capacity of 140kg (22 stone).
The Dipper hoist can be used with either a spreader and sling arrangement or the RANGER transporter chair.

You will also have to allow for a base socket to be fitted.
There are three standard fittings, A, B or C. The choice of socket is dependent on the type, layout and construction of pool deck.
See the user instruction manual pdf for further details.

Downloads
Dipper User Manual
Bathing Lifts Brochure
Sling Guide

Features
Safe working load 140kg / 22st / 309lbs
Choice of standard spreader bar or Ranger Transporter chair
3 floor fixing options ensures suitability for any location
Compatible with all passive looped Oxford slings

Floor fixing options
For maximum flexibility when installing, the Oxford Dipper is available with 3 floor fixing options.
This ensures the Dipper is suitable for use in any location.
Socket A
Socket B
Socket C

We are able to provide a free assessment if required and assessments are subject to area restrictions.
Assessments for private clients subject to area restrictions will be chargeable
Products are not eligible for a free 28 day return if they’ve been used or installed.
(Assessments, Surveys and Installations subject to area restrictions).

VAT exemption (UK only)
There are strict laws governing VAT (Value Added Tax) exemption to registered disabled people in the UK.
Please check with your local VAT office or follow the links from our ARE YOU ELIGIBLE FOR VAT EXEMPTION

NOTE - Specifications may change at the manufacturers discretion.
Any changes will be updated accordingly and no orders will be processed without prior notification.
All orders are subject to Easy Care Systems Ltd Terms and Conditions.
Assessments and site surveys subject to area restrictions.

Specifications

Technical Specification

Safe Working Load (SWL)	140 kg / 22 stone
Boom Length	1498 mm
Height (socket A & B, boom lowered)	1422 mm
Height (socket A & B, boom full elevation)	2108 mm
Base of Seat Above Floor Level (socket A & B)	889 mm
Base of Seat Below Floor Level (socket A & B)	914 mm
Height (socket C, boom lowered)	1572 mm
Height (socket C, boom full elevation)	2258 mm
Base of Seat Above Floor Level (socket C)	1039 mm
Base of Seat Above Floor Level (socket C)	764 mm

Weights:

Weight - Mast Assembly	15.4 kg
Weight - Boom Assembly	10.4 kg
Weight - Chair Support Tube	3.6 kg
Weight - Ranger Seat	4.5 kg
Weight - Ranger Chassis	8.7 kg
Weight - Spreader Bar Assembly	1.7 kg

There are three types of base sockets for the dipper to be located into either Socket A, B or C enabling the Dipper to be fitted alongside the vast majority of swimming pools, Hydrotherapy pools or boat mooring pontoons.

The base socket of the Dipper is subjected to extremely high loads when in use. It is essential the immediate area around the socket is solid concrete construction, we recommend 1 meter sq. We strongly suggest if you’re unsure of what’s required, please contact us on 02380 420678

All installations should be tested against the manufacturers recommendations prior to hand over to the users, with particular attention being paid to the socket and surrounding concrete.

1. Dipper Socket A

This is the most commonly supplied socket and is fitted into a hole 90mm diameter, core bored into the concrete slab to a depth of 245mm. The socket is held firmly in place with a non-shrinking cement. When correctly fitted, the top of the socket is 12mm below the floor level. Each socket is supplied with a blanking plug to prevent an ingress of water when the mast has been removed for storage and injury to swimmers or other participants. When fitted, the top of the blanking plug sits flush with the floor level.

2. Dipper Socket B

This socket is for use on swimming pools with a water channel around the perimeter of the pool. The “B” socket is an “A” socket with a plate which adds additional bracing. The “B” socket plate is fixed in place with six 15mm diameter expanding bolts of the rawl plug type.

3. Dipper Socket C

This socket is surface mounted and stands proud of the floor by 150mm. It is used mainly where there is insufficient depth of concrete for “A” or “B” sockets. The “C” socket plate is drilled for four 15mm rawl bolts. The recommended minimum depth of concrete for the “C” socket is 150mm.

PLEASE NOTE:

The “C” socket adds 150mm to the height of the mast. This alters the maximum height of the bottom of the chair (to 1039mm) and the lowest position of the chair bottom below floor level (to 764mm).
