Oxford Major 200 Mobile Hoist

Product SKU: J-oxf-majoreVAT relief

Model:

Price of this part: £0.00

Item in Stock

£1602.00

The Oxford Major is the perfect cross over product for both nursing and acute care environments.
Its high lifting capacity and lightweight design allow the Major to work well in almost all settings.

quantity

Description

Joerns Healthcare | Oxford Major 200 Mobile Hoist
The Oxford Major is the perfect cross over product for both nursing and acute care environments.
Its high lifting capacity and lightweight design allow the Major to work well in almost all settings.
Available in electric and hydraulic versions.
Electrically operated leg open/close models also available.

Downloads

Features

Safe working load 200kg / 31st / 441lbs

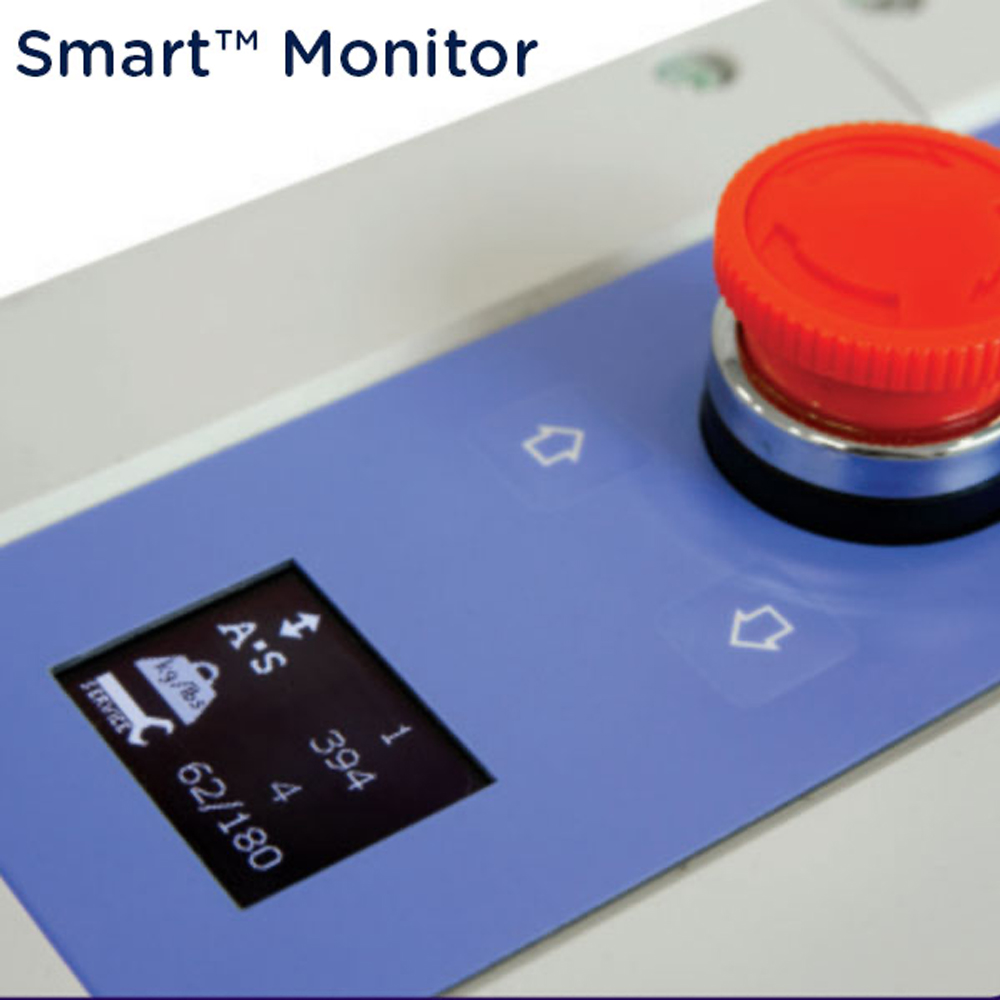

Smart Monitor diagnostic and service controls as standard
Foot pedal leg opening mechanism with latch/lock functionality
Electric leg option available
High-grade castors for easy manoeuvrability
Choice of three spreader bar sizes
Detachable battery pack and desktop charger
Optional Class III digital weigh-scale
Available in electric and hydraulic versions

We are able to provide a free assessment if required and assessments are subject to area restrictions.
Assessments for private clients subject to area restrictions will be chargeable
Products are not eligible for a free 28 day return if they’ve been used or installed.
(Assessments, Surveys and Installations subject to area restrictions).

VAT exemption (UK only)
There are strict laws governing VAT (Value Added Tax) exemption to registered disabled people in the UK.
Please check with your local VAT office or follow the links from our ARE YOU ELIGIBLE FOR VAT EXEMPTION

NOTE - Specifications may change at the manufacturers discretion.
Any changes will be updated accordingly and no orders will be processed without prior notification.
All orders are subject to Easy Care Systems Ltd Terms and Conditions.
Assessments and site surveys subject to area restrictions.

Specifications

Specification	Major 200
Safe Working Load	200kg / 31st / 441Ibs
Length	1300 mm
Maximum Overall Height	1930 mm
Minimum Overall Height	1380 mm
Maximum Spreader Bar Height	1715 mm
Minimum Spreader Bar Height	565 mm
Spreader Bar Height at Maximum Reach	1200 mm
Spreader Bar Reach at Maximum Height	610 mm
Spreader Bar Reach at Minimum Height	515 mm
Maximum Reach	720 mm
Turning Radius	1310 mm
Legs Open – External Width	1230 mm
Legs Open – Internal Width	1140 mm
Legs Closed – External Width	660 mm
Legs Closed – Internal Width	580 mm
Overall Height of Legs	100 mm
Ground Clearance	15 mm
Front Twin Castors	75 mm
Rear Braked Castors	100 mm

Weight	Imperial	Metric
Mast & Boom Assembly	23 kg
Base Assembly	19 kg
Total	42 kg
